Android how to draw a border to a LinearLayout

Creating visually appealing user interfaces is a crucial aspect of Android app development. One common design requirement is adding a border to a LinearLayout, which can significantly enhance the structure and clarity of your app’s layout. While there are several ways to achieve this, we’ll focus on methods that avoid code-heavy solutions and utilize XML drawables for maximum efficiency and maintainability. Learning how to draw a border to a LinearLayout in Android using XML offers a clean, declarative approach, separating styling from logic and promoting better code organization. Whether you’re aiming for a subtle outline or a more prominent visual separator, mastering these techniques will empower you to craft professional-looking Android applications. This guide will walk you through various methods, providing clear examples and best practices to ensure you can effectively implement borders in your LinearLayout elements.

Understanding the LinearLayout and Borders

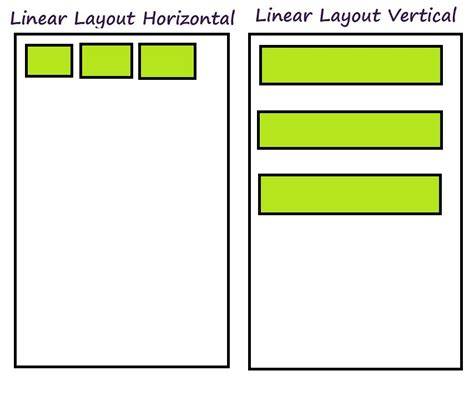

The LinearLayout is a fundamental layout container in Android, arranging its child views in a single direction, either horizontally or vertically. It’s simple yet powerful, making it a popular choice for structuring UI elements. However, by default, a LinearLayout lacks a visual border, which can sometimes make it blend into the background or adjacent elements. Adding a border can improve visual separation, highlight important sections, and enhance the overall user experience. Think of a settings panel in an app, where each section (e.g., “General,” “Notifications,” “Privacy”) is contained within a LinearLayout that’s visually separated by a border. This clear demarcation makes it easier for users to navigate and understand the different settings categories.

Implementing borders effectively involves understanding the different approaches available. You can use shape drawables defined in XML, which are highly customizable and reusable. Alternatively, you could use a more complex approach involving custom views or programmatically adding a Paint object to draw the border, but these methods are often less efficient and harder to maintain compared to using XML drawables. The key to a successful implementation is choosing the right technique based on the complexity of the border you need and the performance considerations of your application. For instance, if you’re simply looking for a solid-colored border, an XML shape drawable is more than sufficient. However, for more complex effects like gradient borders or dashed lines, you might need to explore more advanced techniques.

By understanding the capabilities of LinearLayout and the various methods to draw borders, you can create visually appealing and user-friendly Android applications. This approach not only enhances the aesthetics but also improves the overall usability by clearly defining the boundaries and sections within your app’s interface. The following sections will delve into the practical steps of implementing borders using XML drawables, offering a step-by-step guide to help you achieve professional results.

Drawing Borders with Shape Drawables

Shape drawables in Android are XML files that define geometric shapes, including rectangles, ovals, lines, and rings. They are incredibly versatile and can be used to create a wide range of visual effects, including borders. To draw a border on a LinearLayout, you’ll typically create a rectangle shape drawable with a stroke element that defines the border’s color, width, and dash pattern. This is the recommended approach due to its simplicity, reusability, and performance benefits. According to Android documentation, using drawables is the most efficient way to style views, as it leverages the Android rendering engine effectively. For example, Google’s Material Design guidelines often recommend using shape drawables for buttons and other UI elements to achieve a consistent and visually appealing look.

Here’s how you can create a simple border using a shape drawable:

1. Create a new XML file in the res/drawable directory (e.g., border.xml).
2. Add the following XML code to define the shape: xml
3. Apply the drawable as the background of your LinearLayout in your layout XML file: xml

In this example, the stroke element defines a 2dp wide black border. The solid element sets the background color to transparent, ensuring that the border is visible. The corners element adds rounded corners with a radius of 5dp. You can customize these attributes to achieve the desired border style. Remember that the color should be defined using a hexadecimal color code (e.g., FF000000 for black). Applying this drawable to your LinearLayout will instantly add the specified border, enhancing the visual appearance of your layout container.

Customizing the Border Appearance

The beauty of using shape drawables lies in their flexibility. You can customize the border’s appearance in numerous ways to match your app’s design aesthetic. Beyond the basic color and width, you can also adjust the corner radius, add dashed lines, and even create gradient borders. Experimenting with these attributes can yield unique and visually appealing results. For example, a subtle, light-gray border with rounded corners can give your LinearLayout a softer, more modern look, while a bold, contrasting border can draw attention to important sections of your app.

Here are some customization options:

• Corner Radius: Use the corners element to round the corners of your border. You can specify a single radius for all corners or different radii for each corner using attributes like android:topLeftRadius, android:topRightRadius, android:bottomLeftRadius, and android:bottomRightRadius.
• Dashed Lines: Create dashed borders by adding the android:dashWidth and android:dashGap attributes to the stroke element. android:dashWidth specifies the length of each dash, and android:dashGap specifies the space between dashes. This is useful for creating subtle visual separators without a solid line.
• Gradient Borders: While not directly supported within a single shape drawable, you can achieve a gradient border effect by layering multiple shape drawables or using a more advanced technique like creating a custom view. However, for simple gradient effects, you can explore using a third-party library or custom drawing code.

For instance, to create a dashed border, you can modify the stroke element like this:

xml This will create a black dashed border with dashes that are 5dp long and separated by 3dp gaps. Remember to consider accessibility when customizing your borders. Ensure that the contrast between the border color and the background color is sufficient for users with visual impairments. Use tools like the WebAIM Contrast Checker to verify accessibility. Optimizing Performance and Reusability

When working with drawables, it’s crucial to optimize for performance and reusability. Creating multiple drawables with similar styles can lead to code duplication and increased maintenance overhead. Instead, you should aim to create reusable drawables that can be customized with different attributes using themes or styles. This not only reduces code duplication but also makes it easier to maintain a consistent design across your application. The Android developer documentation provides detailed guidelines on optimizing drawables for performance.

Here are some best practices for optimizing performance and reusability:

• Use Styles and Themes: Define common border styles in your styles.xml file and apply them to your LinearLayout elements. This allows you to easily change the border style across your entire application by modifying a single style definition.
• Drawable Resources: Store your shape drawables in the res/drawable directory to ensure they are properly managed by the Android resource system. This allows you to easily access and reuse them throughout your application.
• Avoid Overdraw: Be mindful of overdraw, which occurs when the system draws the same pixel multiple times in a single frame. When using borders, ensure that the background color of the LinearLayout is set to transparent if the border is the only visual element. This reduces unnecessary rendering and improves performance.

For example, you can define a style for your bordered LinearLayout in styles.xml like this:

xml Then, apply this style to your LinearLayout in your layout XML file: xml By using styles, you can easily reuse and maintain a consistent border style throughout your application, improving both performance and code maintainability. Properly optimized drawables contribute to a smoother user experience and a more efficient application. Drawing a border to a LinearLayout correctly can be a great benefit. Advanced Techniques and Considerations

While shape drawables are sufficient for most border implementations, there are situations where more advanced techniques are required. For example, you might need to create a border with a gradient, a complex pattern, or a custom shape. In these cases, you might consider using custom views or programmatically drawing the border using the Android Canvas API. However, these techniques come with increased complexity and potential performance implications. Always weigh the benefits against the costs before opting for a more advanced approach. For instance, a complex gradient border might look visually appealing, but it could also impact the rendering performance on older devices.

One common challenge is creating borders that dynamically adapt to the content within the LinearLayout. For example, you might want the border to only appear when the LinearLayout contains a certain number of child views or when a specific condition is met. In these cases, you can use data binding or custom view logic to dynamically change the background drawable of the LinearLayout based on the current state. This allows you to create more interactive and responsive user interfaces. For a basic border, using XML drawables is more than sufficient and provides a better user experience. The following paragraph is optimized for featured snippets:

Creating a border for a LinearLayout in Android can be easily achieved using shape drawables defined in XML. This approach involves creating a new XML file in the res/drawable directory, defining a rectangle shape with a stroke element for the border’s color and width, and then applying this drawable as the background of the LinearLayout in your layout XML file. This method is efficient, reusable, and allows for easy customization of the border’s appearance, such as adding rounded corners or dashed lines.

When considering advanced techniques, always prioritize performance and maintainability. Profile your code to identify any performance bottlenecks and optimize accordingly. Use tools like the Android Profiler to monitor CPU usage, memory allocation, and network activity. Remember that a well-optimized border, even if it’s simple, will always provide a better user experience than a complex border that slows down your application.

FAQ: Borders on LinearLayout in Android

**Q: How do I add a border to a LinearLayout in Android?**

A: You can add a border to a LinearLayout using a shape drawable XML file. Define a rectangle shape with a stroke element for the border, then set this drawable as the background of your LinearLayout.

**Q: Can I customize the border color and width?**

A: Yes, you can customize the border color and width by modifying the android:color and android:width attributes in the stroke element of your shape drawable.

**Q: How do I add rounded corners to the border?**

A: You can add rounded corners to the border by adding the <corners> element to your shape drawable and specifying the android:radius attribute.

**Q: Is it possible to create a dashed border?**

A: Yes, you can create a dashed border by adding the android:dashWidth and android:dashGap attributes to the stroke element. These attributes control the length of the dashes and the space between them.

**Q: How can I ensure my border style is consistent across my app?**

A: You can ensure a consistent border style by defining a style in your styles.xml file that includes the border drawable as the background. Then, apply this style to all your LinearLayout elements that **Question & Answer :** I have three files. The XML, the draw function and the main Activity. I have some `LinearLayout` in my XML file.

<LinearLayout android:orientation="horizontal" android:layout_width="fill_parent" android:layout_height="fill_parent" android:layout_weight="1"> <LinearLayout android:layout_width="fill_parent" android:layout_height="fill_parent" android:layout_weight="1" android:background="#ef3" android:id="@+id/img01"/> <LinearLayout android:layout_width="fill_parent" android:layout_height="fill_parent" android:layout_weight="1" android:background="#E8A2B4" android:id="@+id/img02"/> </LinearLayout>

This is the draw function:

public class getBorder extends TextView { public getBorder(Context context) { super(context); } @Override protected void onDraw(Canvas canvas) { super.onDraw(canvas); Paint paint = new Paint(); paint.setColor(android.graphics.Color.RED); canvas.drawLine(0, 0, this.getWidth() - 1, 0, paint); canvas.drawLine(0, 0, 0, this.getHeight() - 1, paint); canvas.drawLine(this.getWidth() - 1, 0, this.getWidth() - 1, this.getHeight() - 1, paint); canvas.drawLine(0, this.getHeight() - 1, this.getWidth() - 1, this.getHeight() - 1, paint); } }

And this is the main Activity:

public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); final getBorder getBorder = new getBorder(this); final LinearLayout img01 = (LinearLayout) findViewById(R.id.img01); img01.setOnClickListener(new View.OnClickListener() { @Override public void onClick(View v) { // TODO Auto-generated method stub getBorder.setWidth(100); getBorder.setHeight(100); img01.addView(getBorder); } }); }

The program could draw border but the size doesn’t fit the LinearLayout. And when I click the LinearLayout again, the program crashed.

Also, I want to draw two circles in the center of the LinearLayout, but how could I figure out the center coordinates?

Do you really need to do that programmatically?

Just considering the title: You could use a ShapeDrawable as android:background…

For example, let’s define res/drawable/my_custom_background.xml as:

<shape xmlns:android="http://schemas.android.com/apk/res/android" android:shape="rectangle"> <corners android:radius="2dp" android:topRightRadius="0dp" android:bottomRightRadius="0dp" android:bottomLeftRadius="0dp" /> <stroke android:width="1dp" android:color="@android:color/white" /> </shape>

and define android:background="@drawable/my_custom_background".

I’ve not tested but it should work.

Update:

I think that’s better to leverage the xml shape drawable resource power if that fits your needs. With a “from scratch” project (for android-8), define res/layout/main.xml

<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="vertical" android:layout_width="match_parent" android:layout_height="match_parent" android:background="@drawable/border" android:padding="10dip" > <TextView android:layout_width="match_parent" android:layout_height="wrap_content" android:text="Hello World, SOnich" /> [... more TextView ...] <TextView android:layout_width="match_parent" android:layout_height="wrap_content" android:text="Hello World, SOnich" /> </LinearLayout>

and a res/drawable/border.xml

<?xml version="1.0" encoding="utf-8"?> <shape xmlns:android="http://schemas.android.com/apk/res/android" android:shape="rectangle"> <stroke android:width="5dip" android:color="@android:color/white" /> </shape>

Reported to work on a gingerbread device. Note that you’ll need to relate android:padding of the LinearLayout to the android:width shape/stroke’s value. Please, do not use @android:color/white in your final application but rather a project defined color.

You could apply android:background="@drawable/border" android:padding="10dip" to each of the LinearLayout from your provided sample.

As for your other posts related to display some circles as LinearLayout’s background, I’m playing with Inset/Scale/Layer drawable resources (see Drawable Resources for further information) to get something working to display perfect circles in the background of a LinearLayout but failed at the moment…

Your problem resides clearly in the use of getBorder.set{Width,Height}(100);. Why do you do that in an onClick method?

I need further information to not miss the point: why do you do that programmatically? Do you need a dynamic behavior? Your input drawables are png or ShapeDrawable is acceptable? etc.

To be continued (maybe tomorrow and as soon as you provide more precisions on what you want to achieve)…
