How can I click a button behind a transparent UIView

Developing user interfaces in iOS often presents unique challenges, especially when dealing with complex view hierarchies. A common scenario developers encounter is the need to interact with elements nested beneath another view that appears transparent. Perhaps you have a custom overlay for a tutorial, a non-interactive visual effect, or a loading indicator, and you need to know how to click a button behind a transparent UIView without dismissing or interacting with the overlay itself. This seemingly straightforward task delves into the intricate world of iOS touch event handling, requiring a deeper understanding of how UIKit processes user input. Navigating these complexities is crucial for creating fluid and intuitive user experiences, preventing frustrating dead zones where users expect interaction but find none. Our goal is to equip you with the knowledge and techniques to effectively manage touch events, ensuring your underlying buttons remain fully responsive.

Understanding iOS Touch Event Handling

In iOS, touch events, like taps, swipes, and pinches, are managed by a sophisticated system that determines which view should respond. This system relies heavily on the UIResponder chain, a linked list of objects that can respond to events. When a user touches the screen, UIKit first identifies the topmost view at the touch location that is capable of responding to user interaction. This process begins with the application’s main window, which then uses the hitTest(_:with:) method to find the most appropriate subview to handle the event.

The hitTest(_:with:) method is pivotal in this process. It recursively traverses the view hierarchy, starting from the superview and moving down to its subviews. For each view, it calls point(inside:with:) to determine if the touch location falls within the view’s bounds. If point(inside:with:) returns true, hitTest continues its search among that view’s subviews, prioritizing the subviews that are rendered on top. If no subview contains the point, or if the view itself is the deepest responder, that view is returned as the “hit-test view” – the one responsible for handling the touch event. Understanding this mechanism is the first step to allowing touches to pass through an overlay to the views beneath.

Critically, for a view to be considered by hitTest(_:with:), its isUserInteractionEnabled property must be set to true, its alpha property must be greater than 0.01, and it must not be hidden. If any of these conditions are not met, the view and its subviews will be ignored during the hit-testing process, effectively making them transparent to touch events. This behavior provides the foundation for several strategies to enable interaction with elements that are visually obscured by a transparent overlay.

Strategies for Passing Touches Through Transparent Views

When you need to click a button behind a transparent UIView, the primary challenge is to prevent the transparent overlay from intercepting the touch events. iOS provides several powerful mechanisms to achieve this, each suitable for different scenarios. The choice of strategy often depends on the exact role of your transparent view and the complexity of your view hierarchy. Two prominent approaches involve modifying the isUserInteractionEnabled property or overriding the hitTest(_:with:) method.

Disabling User Interaction

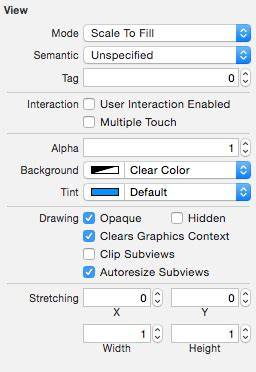

The simplest method to allow touches to pass through a transparent UIView is to disable its user interaction. By setting the isUserInteractionEnabled property of your transparent overlay to false, you effectively remove it from the hit-testing process. When this property is false, UIKit will ignore the view and its subviews during touch event propagation, allowing the touch to “fall through” to the next eligible view beneath it in the view hierarchy. This is ideal for purely decorative or informational overlays that do not require any user input themselves, such as a visual guide or a subtle background effect.

While straightforward, this approach has a limitation: if your transparent view contains any subviews that do need to respond to user interaction (e.g., a close button on an otherwise transparent tutorial overlay), disabling the parent view’s user interaction will also disable interaction for all its subviews. In such cases, you would need a more granular approach, which leads us to overriding hitTest(_:with:). For a deeper dive into how UIKit manages event delivery, consult the official Apple Developer Documentation on Handling UIKit Events.

Overriding hitTest(_:with:)

For more control, especially when your transparent view might contain some interactive elements while allowing others to pass through, overriding the hitTest(_:with:) method is the most robust solution. This method allows you to customize how your view participates in the hit-testing process. Instead of simply returning nil (which would pass the touch to the superview) or one of its own subviews, you can implement custom logic to decide whether the touch should be handled by your transparent view, one of its interactive subviews, or passed through to the views beneath it.

The core idea behind this override is to check if the touch point is within any of your transparent view’s interactive subviews. If it is, you let that subview handle the touch. If not, and the transparent view itself isn’t meant to be interactive, you return nil or iterate through its superview’s subviews to find the appropriate responder. This method grants precise control over touch event propagation, making it the preferred technique for complex overlay designs. For instance, a custom pop-up could have a “dismiss” button that is interactive, but the rest of its transparent background allows touches to activate elements below it.

Implementing hitTest for Passthrough

To effectively click a button behind a transparent UIView using the hitTest(_:with:) override, you need to create a custom UIView subclass. This subclass will contain the logic to selectively pass touch events. This method is particularly useful for overlays that are mostly transparent but might contain small, interactive elements like a close button or a custom indicator that you still want to be tappable within the overlay itself.

Here’s a step-by-step guide to implement this common pattern:

Create a Custom UIView Subclass: Define a new Swift class that inherits from UIView. Let’s call it PassthroughView.
Override hitTest(_:with:): Inside your PassthroughView class, override the hitTest(_:with:) method. This is where the core logic resides.
Iterate Through Subviews: Within the override, loop through all of the PassthroughView’s subviews in reverse order (from top to bottom). For each subview, convert the touch point to the subview’s coordinate system.
Check for Interactive Subviews: Use the subview’s own hitTest(_:with:) method to determine if it, or any of its subviews, should handle the touch. If a subview returns a non-nil view, that means it’s the intended recipient of the touch, and you should return it.
Return nil for Passthrough: If no interactive subview within your PassthroughView claims the touch, and if the PassthroughView itself is not intended to be interactive, return nil from your custom hitTest method. Returning nil tells UIKit to Question & Answer :
Let’s say we have a view controller with one sub view. the subview takes up the center of the screen with 100 px margins on all sides. We then add a bunch of little stuff to click on inside that subview. We are only using the subview to take advantage of the new frame ( x=0, y=0 inside the subview is actually 100,100 in the parent view).

Then, imagine that we have something behind the subview, like a menu. I want the user to be able to select any of the “little stuff” in the subview, but if there is nothing there, I want touches to pass through it (since the background is clear anyway) to the buttons behind it.

How can I do this? It looks like touchesBegan goes through, but buttons don’t work.

Create a custom view for your container and override the pointInside: message to return false when the point isn’t within an eligible child view, like this:

Swift:
```
class PassThroughView: UIView { override func point(inside point: CGPoint, with event: UIEvent?) -> Bool { for subview in subviews { if !subview.isHidden && subview.isUserInteractionEnabled && subview.point(inside: convert(point, to: subview), with: event) { return true } } return false } }
```
Objective C:
```
@interface PassthroughView : UIView @end @implementation PassthroughView -(BOOL)pointInside:(CGPoint)point withEvent:(UIEvent *)event { for (UIView *view in self.subviews) { if (!view.hidden && view.userInteractionEnabled && [view pointInside:[self convertPoint:point toView:view] withEvent:event]) return YES; } return NO; } @end
```
Using this view as a container will allow any of its children to receive touches but the view itself will be transparent to events.
